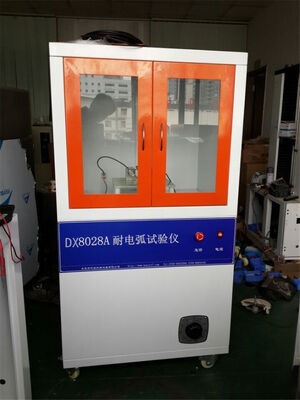

Arc Resistance Testing Machine

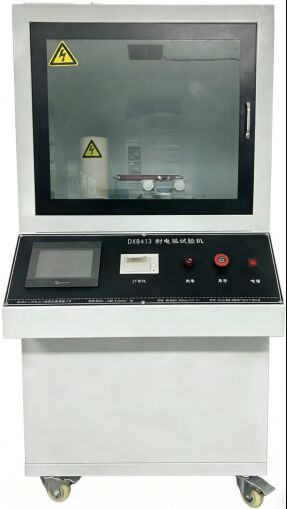

DX8413 Arc resistance testing machine

Mainly applicable to:

GB/T1411-2002 Test of resistance to high voltage and low current arc discharge of dry solid insulation materials.

Compliance with standards: This tester is designed and manufactured in accordance with GB1411, IPC650, IEC 61621, ASTMD495, and complies with testing methods such as JEC 149 and UL 746A.

Brief Introduction to the Test Principle:

Under specified test conditions (using specific electrodes and a voltage/current step-up program), a high voltage is applied to the surface of the material to induce intermittent or continuous arc discharge. The high temperature and chemical corrosion generated by the arc gradually cause the material surface to carbonize and form conductive paths (tracking) until eventual failure (breakdown or sustained burning). The instrument records the elapsed time (in seconds) from the start of the test until the material fails. This time is referred to as the **arc resistance time** of the material and serves as the core indicator for evaluating its performance.

Scope of application:

The assessment of arc resistance performance of electrical insulation materials such as plastics, resin adhesives, and insulating paints used in industries such as motors, appliances, and household appliances is mainly applicable to the testing of arc resistance performance of solid insulation materials such as plastics, films, resins, mica, ceramics, glass, insulating oil, insulating paint, cardboard, and other media.

Features: The arc resistance testing machine adopts computer control, and the test curve can be observed online during the test process; Automatically store test conditions and test results data, and can access, display, and print them

Experimental principle: Used to test the arc resistance of solid insulation materials; The material to be tested will be exposed to a high voltage, gradually increasing small current environment until a stable conductive channel is formed on the surface of the material. This time is the arc resistance time of the material.

Main technical requirements:

1. Input voltage: AC 220 V

2. Output voltage: AC 0-20 KV;

3. Electrical capacity: 1.5 KVA

4. Test method: intermittent arc, continuous arc

5. Test current: 10MA-20MA-30MA-40MA optional

6. Test voltage control error: ≤ 1%

7. Arc on/off time error:<5ms

8. Test voltage continuously adjustable: 0-20 KV

9. Current control accuracy: ± 10%

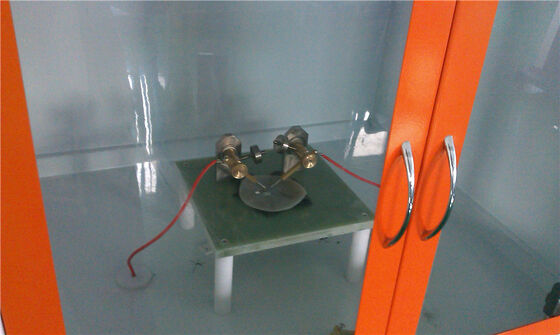

10. Electrode specification: stainless steel plate electrode 25.4mm * 12.7mm * 0.15mm

Tungsten steel electrode 56mm * 7mm * 30mm

Electrode configuration angle 110 degrees

The angle between the electrode and the horizontal plane is 35 degrees

Electrode weight: 50G

11. Security measures:

(1) Overvoltage protection

(2) Overcurrent protection

(3) Short circuit protection

(4) Security door opening protection

(5) Software Misoperation Protection

12. External dimensions: 800 long × Width 700 × 1350mm high

Main configuration:

Test host: one unit

20000 volt high-voltage generator: one unit

Fully automatic microcomputer voltage regulation device :one set(serial port mode)

Voltage acquisition and current acquisition isolation type transmission device:one set

Test electrodes: two sets

current release rod :one (resin type)

Computer arc resistant measurement and control software:one set

Computers: one set

Branded color inkjet printer:one set

Program CDs :one set

Product user manual:one copy

Metrological verification certificate:one copy

Certificate of conformity: one copy

Random tool: one set
